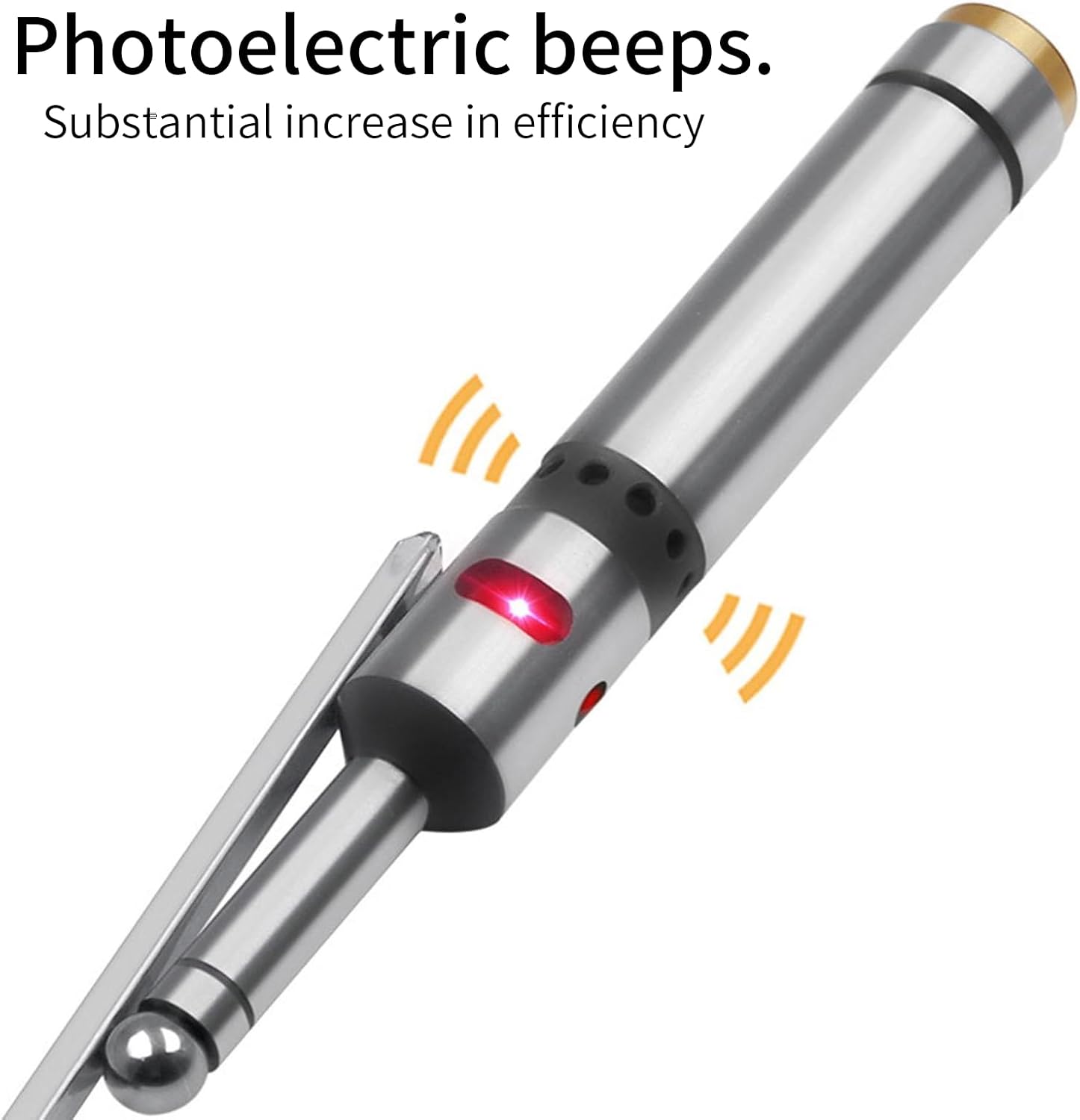

Photoelectric Edge Finder, Stainless Steel Electronic Edge Finder Non Magnetic Centering Rod Edge Finder Detector Machinist for Milling Machines, End Beds

Specification:Item Type: Photoelectric Edge FinderMaterial: Stainless SteelColor: SilverKnife Handle Diameter: Approx. 20mm / 0.8inMeasuring Range: Approx. 10mm / 0.4inAccuracy: 0.02-0.01mmBattery: 1.5V Photoelectric Edge Finder Special Battery x 2 (Without Battery)Use: Commonly used in milling machines, end beds, and other mechanical equipment, etc.Package List:1 x Edge Finder 1 x Manual With a measuring range of up to 10 mm and an accuracy of 0.02-0.01 mm, this edge finder ensures high precision in machining operations and provides effective assistance during the machining process. Coordinate measuring machines can avoid rework caused by inaccurate positioning. The probe of the edge finder is hardened and finely ground, so it can measure without rotation, while the spring-loaded sensor prevents accidental damage, ensuring long-lasting durability and reliable performance. Made of high-quality stainless steel, this optical edge finder is a practical and convenient tool that can meet your machining needs. Its rugged construction ensures that it can withstand the rigors of use in various industrial environments. The main function of the electronic edge finder is to determine the X and Y offsets of the workpiece coordinate system relative to the machine tool coordinate system, helping you to establish accurate reference points and quickly locate the machine tool. In addition to determining the offset, the non-magnetic centering rod can accurately measure the workpiece dimensions to provide you with the dimensions required for machining operations. The mechanical edge finder meets the needs of users who need to perform complex work without switching tools when making dimensional measurements.

• High Accuracy:With a measuring range of 10 mm and an accuracy of 0.02-0.01 mm, this edge finder machinist ensures high precision in machining operations and provides effective assistance during machining. coordinate measuring machines avoids the need for rework due to inaccurate positioning

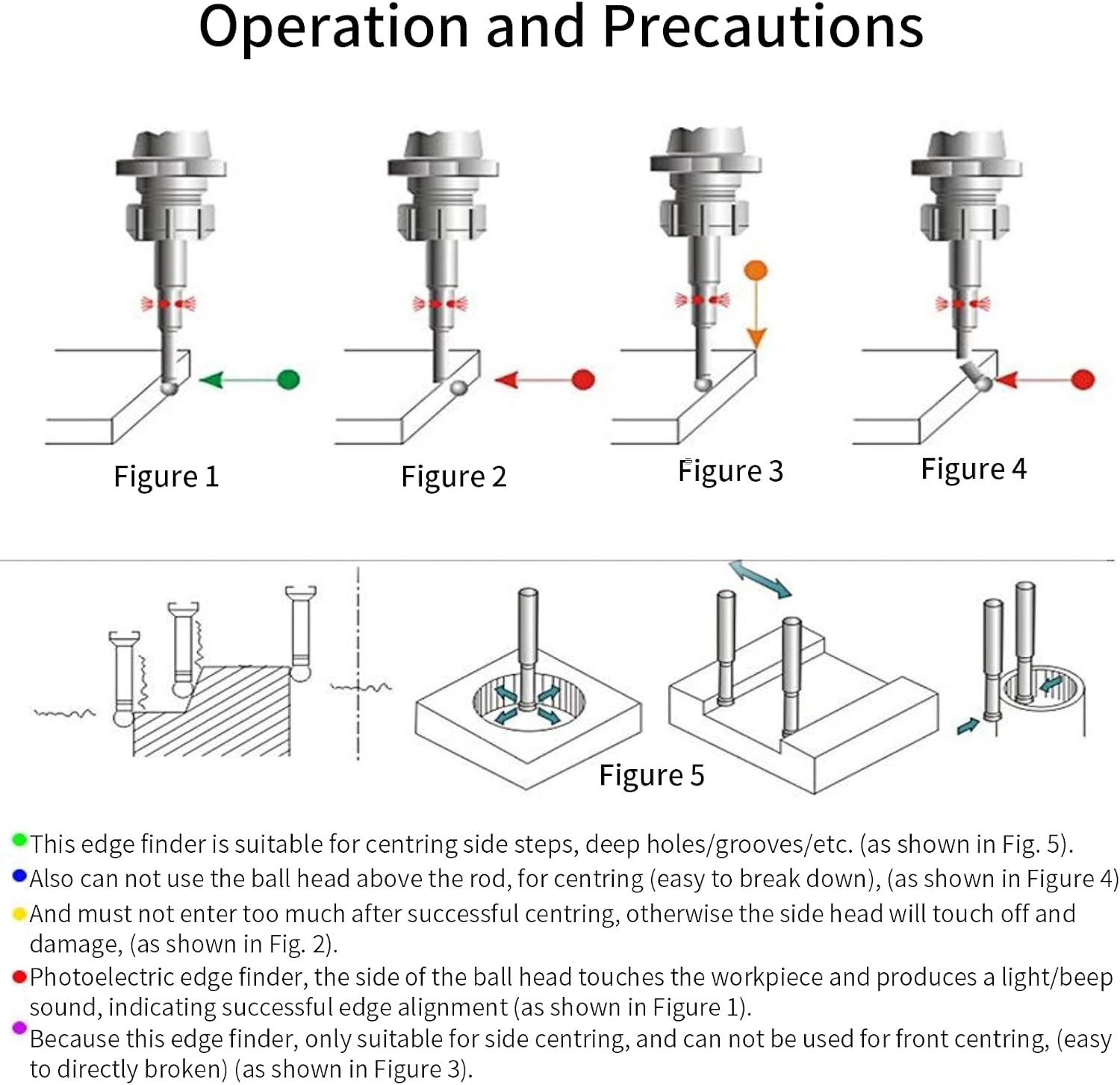

• Offset Value:The primary function of the electronic edge finder machining is to determine the X and Y offsets of the workpiece co-ordinate system relative to the machine co-ordinate system, helping you to establish an accurate reference point and enabling you to position the machine quickly
• Probe and Sensor:The edge detector's probe is hardened and finely ground for without rotation measurement, while the spring-loaded sensor protects against accidental damage, ensuring long-lasting performance and reliability
• Simple Size Measurement:In addition to determining offset, the non-magnetic centering rod accurately measures the dimensions of the workpiece, giving you the dimensions you need for your machining operations. Mechanical edge finder meet the requirements of users who need to perform complex jobs without switching tools when taking dimensional measurements
• Overall Stainless Steel:Made from high quality stainless steel, this photoelectric edge finder is a practical and convenient tool for your machining needs. Its rugged construction ensures that it will withstand the rigours of use in a variety of industrial environments
