| Management number | 239804978 | Release Date | 2026/07/14 | List Price | US$60.62 | Model Number | 239804978 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

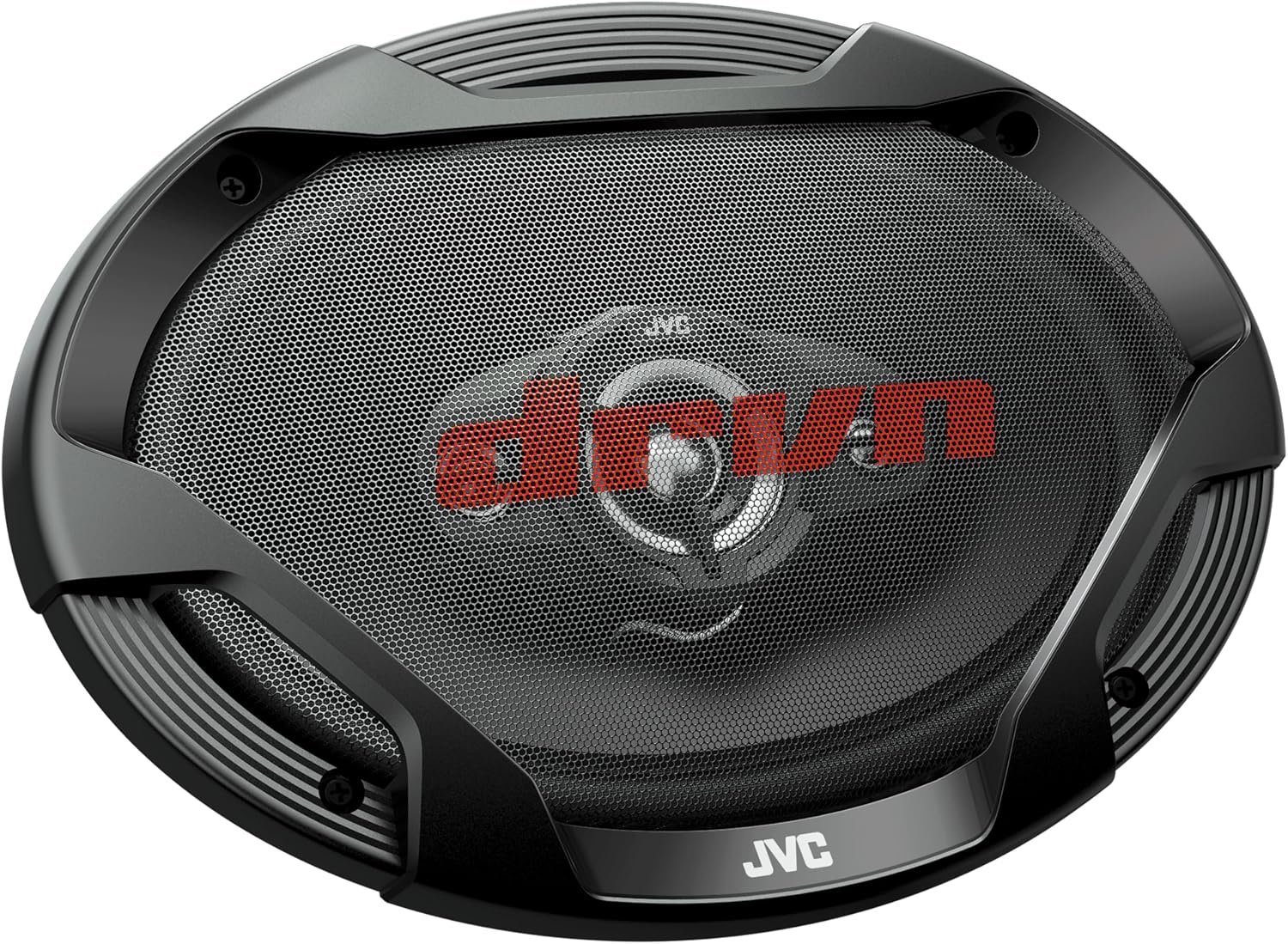

The JVC CS-DR6942 is a powerful 6 x 9 inch 4-way car speaker from the DRVN series. With 550 W maximum peak power, 90 W RMS rated power and 4 ohm impedance, it is designed for powerful and dynamic music playback in the vehicle. The 4-way system includes a 50mm midrange, a 20mm balanced dome tweeter and a 12mm super tweeter. The Horn Ring Sound Enhancer Technology supports improved sound radiation, while the particularly strong magnetic drive ensures impressive playback. The transmission range ranges from 45Hz to 18,000Hz. Speaker cover and 2 x 30cm speaker connection cables are included. Technical data: - Size: 6 x 9 inches. - Speaker type: 4-way speaker - Max. Peak power: 550 W - Rated power: 90 W RMS. - Sensitivity: 86 dB/W/m - Transmission range: 45 Hz – 18,000 Hz - Impedance: 4 ohms. - Dimensions (WxHxD): 267.8 x 191.3 x 113.8 mm - Installation depth: 82.6 mm.
| ASIN | B0GZNZNS7N |
|---|---|
| Brand | JVC |
| Color | black |
| Impedance | 4 Ohms |
| Model Name | CS-DR6942 |
| Unit Count | 1.0 Count |
| Item Weight | 2.52 Kilograms |
| Manufacturer | JVCKENWOOD |
| Model Number | CS-DR6942 |
| Speaker Type | Coaxial |
| BuiltIn Media | 2 x 30 cm speaker cable, speaker cover |
| Is Waterproof | False |
| Mounting Type | Flush Mount |
| Warranty Type | Limited |
| Number of Items | 1 |
| Tweeter Diameter | 20 Millimeters |
| Audio Output Mode | Stereo |
| Frequency Response | 18 KHz |
| Warranty Description | 24 month |
| Water Resistance Level | Moisture Resistant |
| Connectivity Technology | Cable |
| Number of Audio Channels | 2.0 |
| Item Dimensions D x W x H | 4.48"D x 10.54"W x 7.53"H |
| Speaker Maximum Output Power | 550 Watts |
