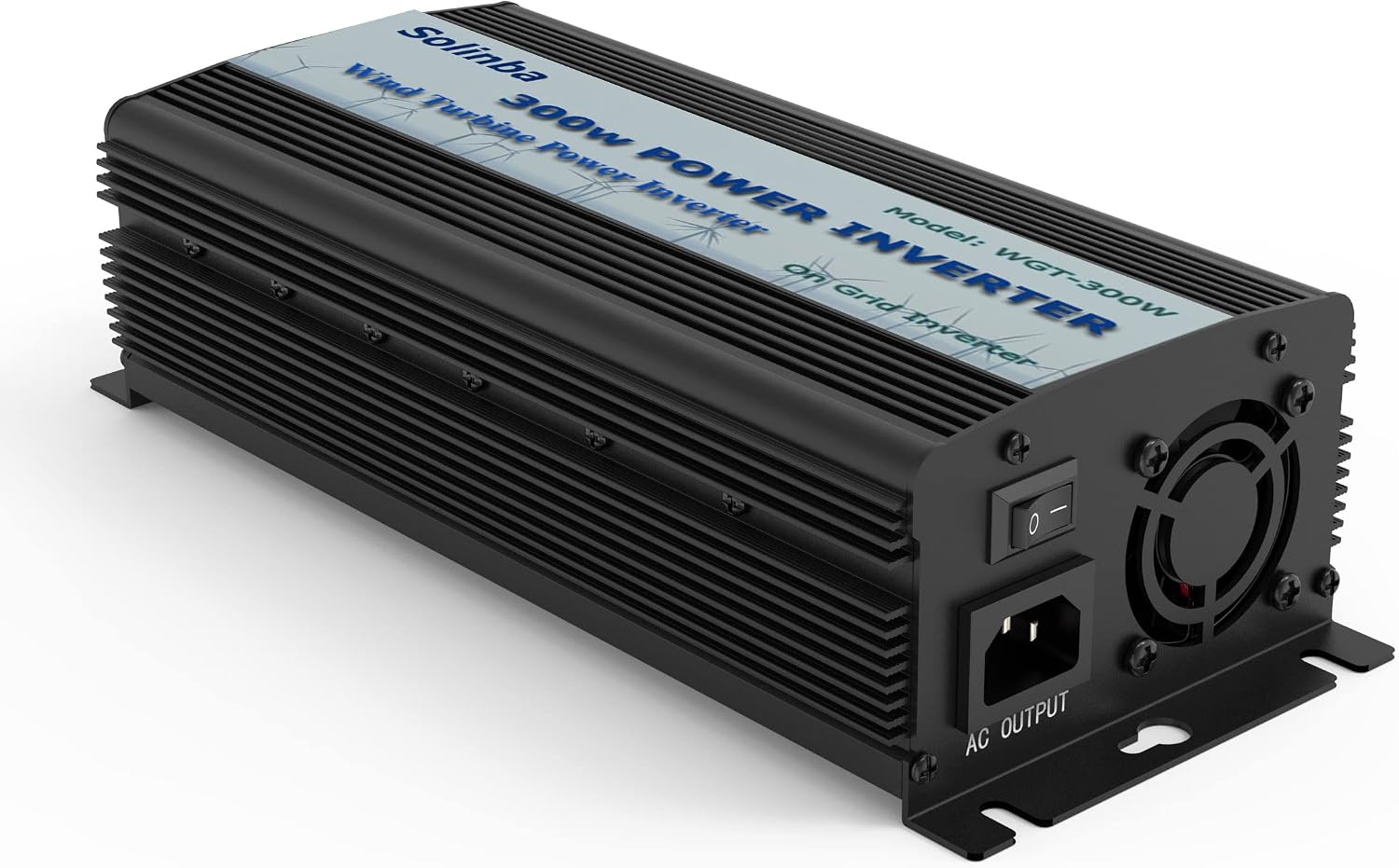

300w on Grid tie Inverter for Wind Turbine 110v dc to ac Pure sine Wave (WGT3-12V-US)

Specification Model No.: WGT3-12v Rated output power: 300w Max output power: 350w Normal AC Output Power:270w DC input voltage range: DC12-30v AC output voltage: AC90-130v Output waveform: pure sine wave For 12v wind turbine system High frequency and high efficiency Maximum Power Point Tracking LED light show different working status Hooking way Wind turbine connect with inverter red terminals, braking resistor connect with inverter black terminals, AC connect your home grid Note Wind turbine produce 3 phase AC low voltage, for example, the wind turbine produce 12v voltage, rectifier was built in our inverter, the rectifier will convert the 3 phase AC voltage to single phase DC voltage, the calculate way is 12v x 1.5 times=18v, 18v is within our DC12-30v inverter, this wind can match our DC12-30v inverter. When the Single phase DC voltage is about 24.5v, the braking resistor work, it can consume partial power and protect the inverter, then inverter won't be burned because of overload. When the single phase DC voltage is >29v(big wind), the braking resistor will make the inverter and wind turbine stop work to protect the inverter. Inverter won't be burned because of the high voltage and overload, after some minutes, the wind turbine and inverter will work again. Packing content 1PC Power inverter+braking resistor 1PC Power cord+power meter 1PC user manual warranty: 1 year This grid tie inverter was designed for wind turbine, please check the DC input voltage and cofirm it is within the inverter DC range.

• The small wind grid inverter can draw wind energy from a wind turbine and can be connected to the grid via its output cables without additional equipment. The installation is very convenient and reliable.
• The inverter can be connected to all sockets of the public power grid in the house. It monitors the volume, frequency and phase of the home power network, and then generates pure sine wave AC current, the frequency and phase of which are equal to those of the network, and the volume is slightly higher than that of the network, then according to the controlled current PWM to control the output power to the network.
• When the wind turbine rotates and the output voltage is in the range of the rated input voltage of the inverter, the wind turbine generates electricity and the grid inverter changes the power from the wind turbine to the house grid.
• Wind turbines Grid Inverter is a grid coupled wind power controller and inverter integrated machine with MPPT function. It looks clear and is easy to use.
• Over current/Low voltage/High voltage/Short circuit/Temperature/Island protection
