10Amp 22mm 3 Position Rotary Selector Switch with 24V Green LED, 10A 660VAC DPST 2NO Latching, IP65 Waterproof, 7/8" Panel Mount Industrial Switch
Product details
| Management number | 247481822 | Release Date | 2026/08/16 | List Price | US$6.40 | Model Number | 247481822 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Special Note: This selector switch, Must be fixed to use on the panel. There are 2 screws fixed behind the panel.22mm panel cutout diameter, self-locking action. Used widely to control the electromagnetic starter, Contactor, relay and other automatic control electric circuits.
- 3-Position latching rotary switch ((Left–OFF–Right)). Built-in 24V green LED lights up in left/right positions, providing clear visual status indication for safer operation. While turning off the light in the middle.
- Product name: Brand New 22mm Metal Head 3 Position Selector Switch. This rotary switch on a panel that is no more than about 6 mm thick .The 3 position switch can be fixed by tightening two screws.

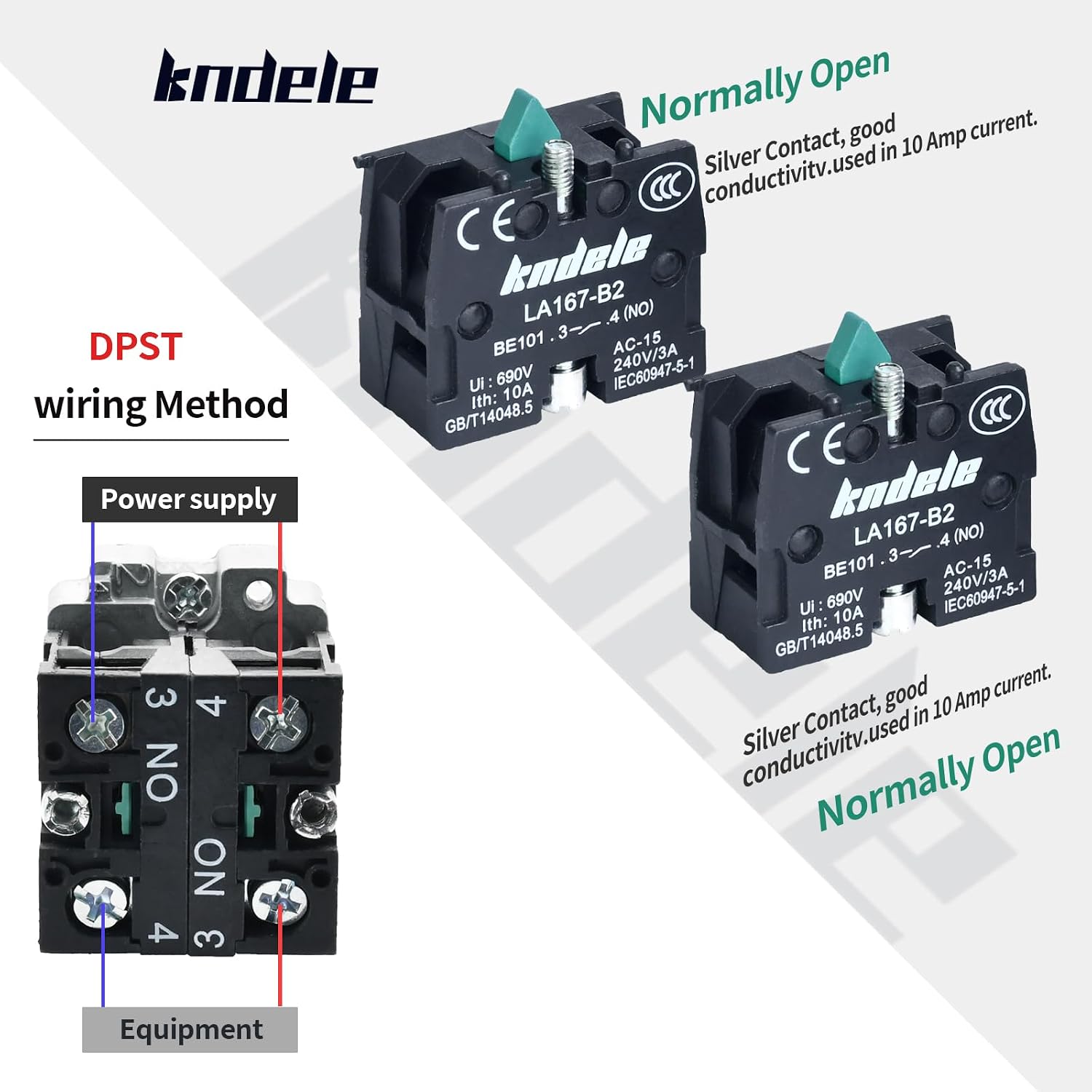

- Contact: DPST, 2 Normally Open , Switch Rating: 10Amp 660VAC, 3Amp 240V AC. Green rotating head with 24V Green LED light. Screw tightening torque: 0.4N.m
- IP65 waterproof front panel protects against dust and water. Mechanical & electrical lifespan over 100,000 cycles, built for demanding environments. Fit Panel Thickness(Adjustable) : Max 8.5mm / 0.3" ; total Size: 28.7 x 32.5 x 76 mm / 1. 1" x 1. 3" x 2. 9" (l*w*h)
- Material: Nylon Body, Alum Circuit, Silver Contact, Brass Conductor. Fix the back of the panel with screws. Package Content : 1 Pcs x 3 Position Rotary Switch.Wiring method: spiral press in terminal, wiring capacity: minimum 1x0.5mm ², maximum with or without terminal strips; 2x1.5mm ² or 1x2.5 ² mm.
| ASIN | B0DDQDT2RZ |
|---|---|
| Color | Green |
| Model | KN-LA167-572GD |
| Wattage | 240 watts |
| Terminal | Screw |
| Brand Name | KNDELE |
| Unit Count | 1 Count |
| Item Weight | 3.68 ounces |
| Part Number | KN-LA167-572GD |
| Switch Type | Rotary |
| Circuit Type | 2-way |
| Contact Type | 2 Normally Open, Dpst |
| Manufacturer | KNDELE |
| Actuator Type | Rotary |
| Material Type | Nylon, Aluminum, Silver, Brass |
| Mounting Type | Panel Mount |
| Connector Type | Screw |
| Control Method | Touch |
| Current Rating | 10 A |
| Operation Mode | ON-OFF-ON |
| Controller Type | Mechanical knob |
| Item Dimensions | 1.57 x 1.18 x 3.51 inches |
| Number of Items | 1 |
| Contact Material | Silver |
| Operating Voltage | 24 volts_of_direct_current |
| Specification Met | CE, RoHS |
| Included Components | 1 x Selector Switch, 4 x Terminals |
| Number of Positions | 3 |
| Warranty Description | If you have any quality issues, please contact us |
| Upper Temperature Rating | 55 °C |
| International Protection Rating | IP65 |
